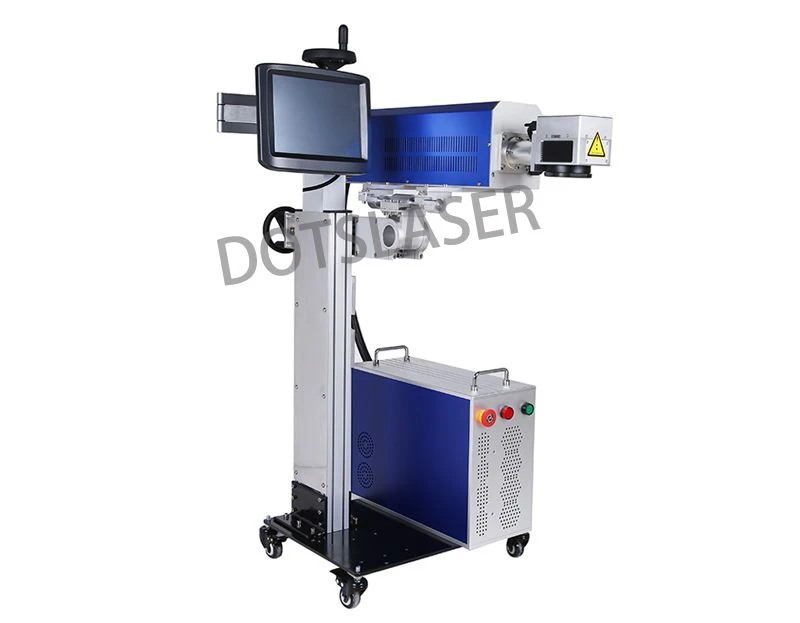

CO2 lazerli chivinlarni markalash mashinasi

Ishlab chiqarishga kirish.

The CO2 laser fly marking machine adopts a gas laser with an infrared light band of 10.64 μm. The CO2 gas is charged into the high-voltage discharge tube to generate a glow discharge, so that the gas molecules emit laser light, and the laser energy is amplified to form a laser beam for material processing. Thus, a clear, permanent, indelible mark is formed on the surface of the processed object.

CO2 massiv ishlab chiqarish liniyasi lazer markalash mashinasi sifatida ham tanilgan Co2 lazerli chivinli markalash mashinasi asosan turli xil mahsulotlar yoki tashqi qadoqlash yuzasida massiv ishlab chiqarish liniyasi lazer markalash uchun ishlatiladi. An'anaviy statik lazer markalash mashinasi bilan taqqoslaganda, uchish Lazer markalash mashinasining o'yma jarayonida mahsulotlar ishlab chiqarish liniyasida uzluksiz oqishi mumkin, bu ishlab chiqarish samaradorligini sezilarli darajada yaxshilaydi va lazer markalash mashinasini sanoat yig'ish liniyasi ishlab chiqarish talablariga javob beradi. .

CO2 lazerli chivinlarni markalash mashinasining printsipi

CO2 laser fly marking machine is a laser marking machine that uses CO2 gas as the working medium. The CO2 laser uses CO2 gas as the medium. CO2 and other auxiliary gases are charged into the discharge tube and high voltage is applied to the electrodes. Glow discharge is generated in the discharge tube, so that the gas emits a laser with a wavelength of 10.64um. After mirror scanning, mirror reflection and field mirror focusing, under the control of computer and laser marking board, images, characters, numbers and lines can be marked on the workpiece according to the user's requirements.

Karbonat angidrid lazeri molekulyar lazerning bir turi bo'lib, asosiy modda karbonat angidrid molekulasi bo'lib, uning tebranish va aylanish shakliga qarab turli xil energiya holatlarini ko'rsatishi mumkin. CO2 tarkibidagi gaz aralashmasi (CO2, geliy, azot) elektronlar chiqishi natijasida yuzaga keladigan past bosimli gaz plazmasi. Maksvell{3}}Boltzmanning taqsimot qonunida taʼkidlanganidek, plazmada molekulalar turli xil qoʻzgʻaluvchan holatlarni namoyon qiladi. Ba'zilar yuqori energiya holatlarini namoyish etadilar. U assimetrik tebranish holatini ko'rsatadi. Molekula ham vaqti-vaqti bilan ichi bo'sh devor bilan to'qnashganda yoki tabiiy ravishda chiqayotganda energiyani yo'qotadi.

Through natural emission, this high-energy state descends into a symmetrical wiggling configuration and emits photons (a beam with a wavelength of 10.6 μm) that may travel in any direction, one of which travels along the optical path and exits the galvanometer. swing in. Then, after the reflection of the total reflection mirror, the laser in the resonator forms a laser beam.

CO2 lazerli chivinlarni markalash mashinasining xususiyatlari

1. Kontaktsiz ishlov berish: ajoyib belgilar har qanday oddiy yoki tartibsiz sirtda belgilanishi mumkin;

2. Keng ko'lamli ilovalar: grafik va matnlar-ko'pchilik metall bo'lmagan materiallar va ba'zi metall materiallarda belgilanishi mumkin;

3. Kam operatsion xarajat: markalash tezligi tez va markirovka bir vaqtning o'zida shakllanadi, juda kam sarf materiallari bilan, shuning uchun operatsion xarajatlar past;

4. Yig'ish liniyasini markalash: ishlab chiqarish liniyasining avtomatlashtirish darajasini yaxshilash uchun ishlab chiqarish liniyasidagi boshqa uskunalar bilan birlashtirilishi mumkin;

5. Belgilash aniq, doimiy va oʻchirilmaydigan-, chiroyli va kontrafaktga qarshi samarali-boʻlishi mumkin, xizmat muddati uzoq va ifloslanmaydi.

CO2 lazerli chivinlarni markalash mashinasining asosiy parametrlari

Quvvat: 30W/60W/100W

Lazer to'lqin uzunligi: 10640nm

Chastota diapazoni: 20100KHZ

Marking line speed:  Less than or equal to 8000mm/s

Minimal chiziq kengligi: 0,1 mm (materialga bog'liq)

Minimal shrift:0.4mm(materialga bogʻliq)

Repetition accuracy:±0.01mm

Operatsion tizim: sensorli ekranni boshqarish tizimi

Belgilash diapazoni: 100x100mm (standart), 175x175mm300x300mm (ixtiyoriy)

Umumiy og'irligi: 120 kg

Sovutish: suv-sovutilgan/havo-sovutilgan

CO2 lazerli chivinlarni markalash mashinasining namunalari

Video ko'rsatuv

Shipping
